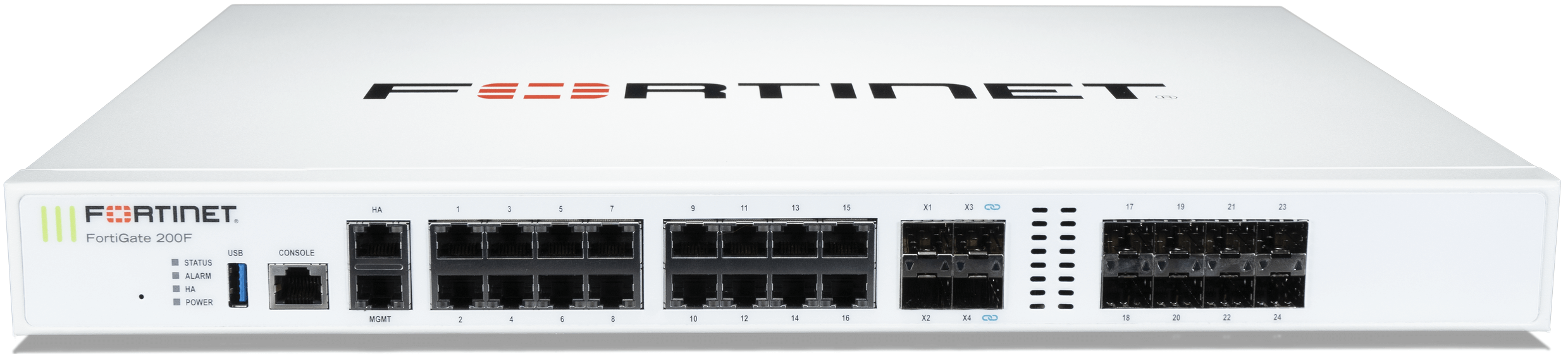

Fortinet FortiGate 200F Firewall

Fortinet FortiGate Firewall FG-200F with 18 x GE RJ45 (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, NP6XLite and CP9 hardware accelerated.

Product information "Fortinet FortiGate 200F Firewall"

Begrenztes Budget? - Fordern Sie jetzt Ihr attraktives Angebot an!

The FortiGate 200F Series provides an application-centric, scalable and secure SD-WAN solution with next-generation firewall (NGFW) capabilities for medium to large enterprises deployed at the campus or branch office level. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable and easy-to-deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network into the new generation of security.

The FortiGate 200F uses the industry's first SoC4 SD-WAN ASIC, which provides the industry's fastest application identification and control for more than 5,000 applications. This allows users to avoid delays in accessing their applications and accelerate overlay performance by providing low latency and the best possible user experience for business-critical applications.

FortiGate 200F FAQ

Supports the FortiGate 200F BGP routing?
BGP is a routing protocol that interconnects autonomous systems and searches for the best route based on strategic and metric criteria. If you want to learn more about configuring BGP routing with your FG-200F, click here.

Provides the FortiGate 200F Hardware Acceleration?
The FortiGate 200F offers hardware acceleration through a CP9 and NP6X-Lite chip, which were specially designed by Fortinet to take over special tasks. This reduces the load on the hardware. For more information, please refer to the FortiGate 200F datasheet.

Are there FortiGate 200F HA ports?
The FortiGate 200F has its own HA ports for possible high availability, which means that no existing ports need to be expended. The ports are located on the front of the unit and are labeled HA.

Benefits:

  • Gartner Magic Quadrant Leader for both Network Firewalls and WAN Edge Infrastructure
  • Security-Driven Networking:FortiOS delivers converged networking and security
  • State-of-the-Art Unparalleled Performancewith Fortinet’s patented / SPU / vSPU processors
  • Enterprise Securitywith consolidated AI / ML-powered FortiGuard Services
  • Deep Visibility into applications, users, and devices beyond traditional firewall techniques

A component of every FortiGate firewall is, among others, the free use of IPSec and SSL VPN. Here the free FortiClient VPN can be used as VPN client. Instructions for setting up the VPN can be found in the FortiGate CookBook, among other places.

Thanks to the Fortigate VDOM functionality, you have the option of making your firewall multi-tenant. Thus, you can operate your own firewalls for different departments in a very granular way.

With the Fortinet Support (included as FortiCare in every license bundle), you get the possibility to contact the manufacturer directly in case of problems or questions. Among other things, this support license is also necessary for obtaining and downloading firmware updates.

Fortinet FortiGate basic functionality

 Enterprise Protection
 Unified Threat Protection (UTP)
 Advanced Threat Protection (ATP)
 Basic functionality
Fortinet VPN Fortinet Antivirus Fortinet Anti-Spam Fortinet Industrial Security Service
Virtual Private Network (VPN) Antivirus Antispam Inline CASB Database + DLP
Fortinet SD-WAN Services Fortinet Intrusion Prevention System Fortinet Web Filter Fortinet IoT Services
SD-WAN Services Intrusion Prevention System (IPS) Web & Video Filter AI-based Inline Malware Prevention
Fortinet Applikationskontrolle Fortinet Mobile Security   Fortinet FortiConverter Service
Application controll

Mobile Security   FortiConverter Service
Fortinet FortiCare Support Fortinet FortiSandbox Cloud   Fortinet Security Rating Service
FortiCare Support* FortiSandbox Cloud   Attack Surface Security

* Please note that without a license you can only use FortiCare Support for 90 days.
** Inactive elements are not included in this bundle.

FortiGate licensing FortiGate SMB Sizing Guide FortiGate Live-Demo



FortiGate license information

With the Fortinet Security Fabric to Unified Network Management

Many IT managers are faced with the challenge of having to manage and administer increasingly complex systems. This starts with providing effective endpoint protection, moves to providing secured network ports as well as wireless LAN, and ends with unified logging and centralized management. Dank der Fortinet-Security-Fabric können wir Ihnen hier einheitliche Lösungen für Ihre Herausforderung anbieten.

Secure-Access

Thanks to the FortiSwitch, you can deploy a centrally managed and secure network in no time. Die integrierte NAC-Funktionalität auf den Fortinet-Firewalls bietet Ihnen hier ohne zusätzliche Lizenz einen deutlichen Mehrwert im Bereich der Netzwerksicherheit.

Secure-Wireless-LAN

Fast and high-performance WLAN networks are not only needed in offices, but also increasingly in logistics and manufacturing. Thanks to FortiAP Access Points, WLAN networks can be deployed here very quickly and conveniently, which you can manage via the FortiGate firewall, FortiCloud or via a dedicated WLAN controller.

Endpoint-Protection und EDR-Lösungen

With the FortiClient you can not only establish secured VPN connections with your FortiGate firewall. In the paid version, FortiClient can be seen as a full-fledged endpoint protection solution. As a further development, the FortiEDR solution is available. Both solutions can communicate with the FortiGate firewall and transmit telemetry data. With this data, the firewall can review additional information and make decisions on whether or not to allow a device to communicate with the network.

Security Operation Center with the FortiAnalyzer and FortiManager

Increasingly complex networks, distributed across multiple sites, require unified logging and centralized management. Thanks to the FortiAnalyzer, you have the ability to correlate the log files of the various Fortinet solutions and thus gain a unified picture of your network. Mit dem FortiManager haben Sie zusätzlich die Möglichkeit, Ihre Fortinet-Lösungen zentral zu verwalten und zum Beispiel Firmware Updates auszurollen.

Product information

Abmessungen Breite x Tiefe x Höhe: 432 x 342 x 44 mm
Anzahl Netzteile inklusive / maximal : 2 / 2
Anzahl unterstützte Switche: 64
Application-Control-Durchsatz: 13 Gbps
Bauform: 19"-Rackmount (1HE)
Client VPN-Tunnel: 16.500 (16.000 IPSec- + 500 SSL gleichzeitig)
Einsatz: mittelgroße Unternehmen
Firewall IMIX: 11 Gbps
Firewall throughput: 27 Gbps
Gewicht: 4,5 kg
Gleichzeitige Verbindungen: 3.000.000
Gleichzeitige Verbindungen - SSL: 300.000
IPS Throughput: 5 Gbps
IPsec VPN Throughput : 13 Gbps
Latenz (64 Byte UDP): 5 μs
Netzwerk/User: 50-200
Neue Verbindungen/Sek: 280.000
Number of 10 GE SFP+ Ports: 4
Number of GE RJ45 Ports: 24
Number of GE SFP Ports : 8
Pakete pro Sekunde / MPPS: 17
Produkt Generation: F (6. Generation)
SSL-Inspection-Durchsatz: 4 Gbps
SSL-VPN Client-Lizenzen inklusive: 128 (64 im FortiAP Tunnel Mode), ∞
SSL-VPN Throughput: 2 Gbps
Site-2-Site (IPSec) VPN-Tunnel: 2.500
Stromversorgung: Intern
Threat Protection Throughput: 3 Gbps
Term: only Hardware
Internal storage: No
Compare product
Rating
Description
{{ "pb.fortigate.allgemein" | trans | raw }}{{ "liz.ftnt.hw" | trans | raw }}{{ "pb.fortinet.security.fabric" | trans | raw }}
{{ "pb.fortigate.allgemein" | trans | raw }}{{ "liz.ftnt.hw" | trans | raw }}{{ "pb.fortinet.security.fabric" | trans | raw }}
{{ "pb.fortigate.allgemein" | trans | raw }}{{ "liz.ftnt.hw" | trans | raw }}{{ "pb.fortinet.security.fabric" | trans | raw }}
{{ "pb.fortigate.allgemein" | trans | raw }}{{ "liz.ftnt.hw" | trans | raw }}{{ "pb.fortinet.security.fabric" | trans | raw }}
{{ "pb.fortigate.allgemein" | trans | raw }}{{ "liz.ftnt.hw" | trans | raw }}{{ "pb.fortinet.security.fabric" | trans | raw }}
{{ "pb.fortigate.allgemein" | trans | raw }}{{ "liz.ftnt.hw" | trans | raw }}{{ "pb.fortinet.security.fabric" | trans | raw }}
{{ "pb.fortigate.allgemein" | trans | raw }}{{ "liz.ftnt.hw" | trans | raw }}{{ "pb.fortinet.security.fabric" | trans | raw }}
Price

€5,738.04*

€2,794.50*

€3,986.82*

€9,857.34*

€19,067.81*

€13,119.66*

€31,050.00*

Abmessungen Breite x Tiefe x Höhe
432 x 342 x 44 mm
432 x 254 x 44 mm
-
-
-
-
-
Anzahl Netzteile inklusive / maximal
2 / 2
2 / 2
-
-
-
-
-
Anzahl unterstützte Switche
64
24
-
-
-
-
-
Application-Control-Durchsatz
13 Gbps
2,2 Gbps
-
-
-
-
-
Bauform
19"-Rackmount (1HE)
19"-Rackmount (1HE)
-
-
-
-
-
Client VPN-Tunnel
16.500 (16.000 IPSec- + 500 SSL gleichzeitig)
16.500 (16.000 IPSec- + 500 SSL gleichzeitig)
-
-
-
-
-
Einsatz
mittelgroße Unternehmen
mittelgroße Unternehmen
-
-
-
-
-
Firewall IMIX
11 Gbps
10 Gbps
-
-
-
-
-
Firewall throughput
27 Gbps
-
-
32 Gbps
139 Gbps
-
164 Gbps
Gewicht
4,5 kg
3,29 kg
-
-
-
-
-
Gleichzeitige Verbindungen
3.000.000
1.500.000
-
-
-
-
-
Gleichzeitige Verbindungen - SSL
300.000
135.000
-
-
-
-
-
IPS Throughput
5 Gbps
2,6 Gbps
-
7,8 Gbps
14 Gbps
-
26 Gbps
IPsec VPN Throughput
13 Gbps
11,5 Gbps
-
20 Gbps
55 Gbps
-
55 Gbps
Latenz (64 Byte UDP)
5 μs
5 μs
-
-
-
-
-
Netzwerk/User
50-200
50-200
-
-
-
-
-
Neue Verbindungen/Sek
280.000
56.000
-
-
-
-
-
Number of 10 GE SFP+ Ports
4
2
-
-
-
8
-
Number of GE RJ45 Ports
24
24
-
-
-
18 (including 1 x MGMT port, 1 X HA port, 16 x switch ports)
-
Number of GE SFP Ports
8
4
-
-
-
8
-
Pakete pro Sekunde / MPPS
17
15
-
-
-
-
-
Produkt Generation
F (6. Generation)
F (6. Generation)
-
-
-
-
-
SSL-Inspection-Durchsatz
4 Gbps
1 Gbps
-
-
-
-
-
SSL-VPN Client-Lizenzen inklusive
128 (64 im FortiAP Tunnel Mode); ∞
128 (64 im FortiAP Tunnel Mode); ∞
-
-
-
-
-
SSL-VPN Throughput
2 Gbps
750 Mbps
-
4,5 Gbps
4,3 Gbps
-
10 Gbps
Site-2-Site (IPSec) VPN-Tunnel
2.500
2.500
-
-
-
-
-
Stromversorgung
Intern
Intern
-
-
-
-
-
Threat Protection Throughput
3 Gbps
800 Mbps
-
5 Gbps
10,5 Gbps
-
20 Gbps
Term
only Hardware
only Hardware
only Hardware
only Hardware
only Hardware
only Hardware
only Hardware
Internal storage
No
No
No
No
No
-
No
Bundle
-
only Hardware
only Hardware
only Hardware
only Hardware
only Hardware
only Hardware
VPN Throughput
-
-
9 Gbps
-
-
-
-
Power Supply
-
-
-
AC
-
-
-
