Fortinet FortiGate 100F Firewall

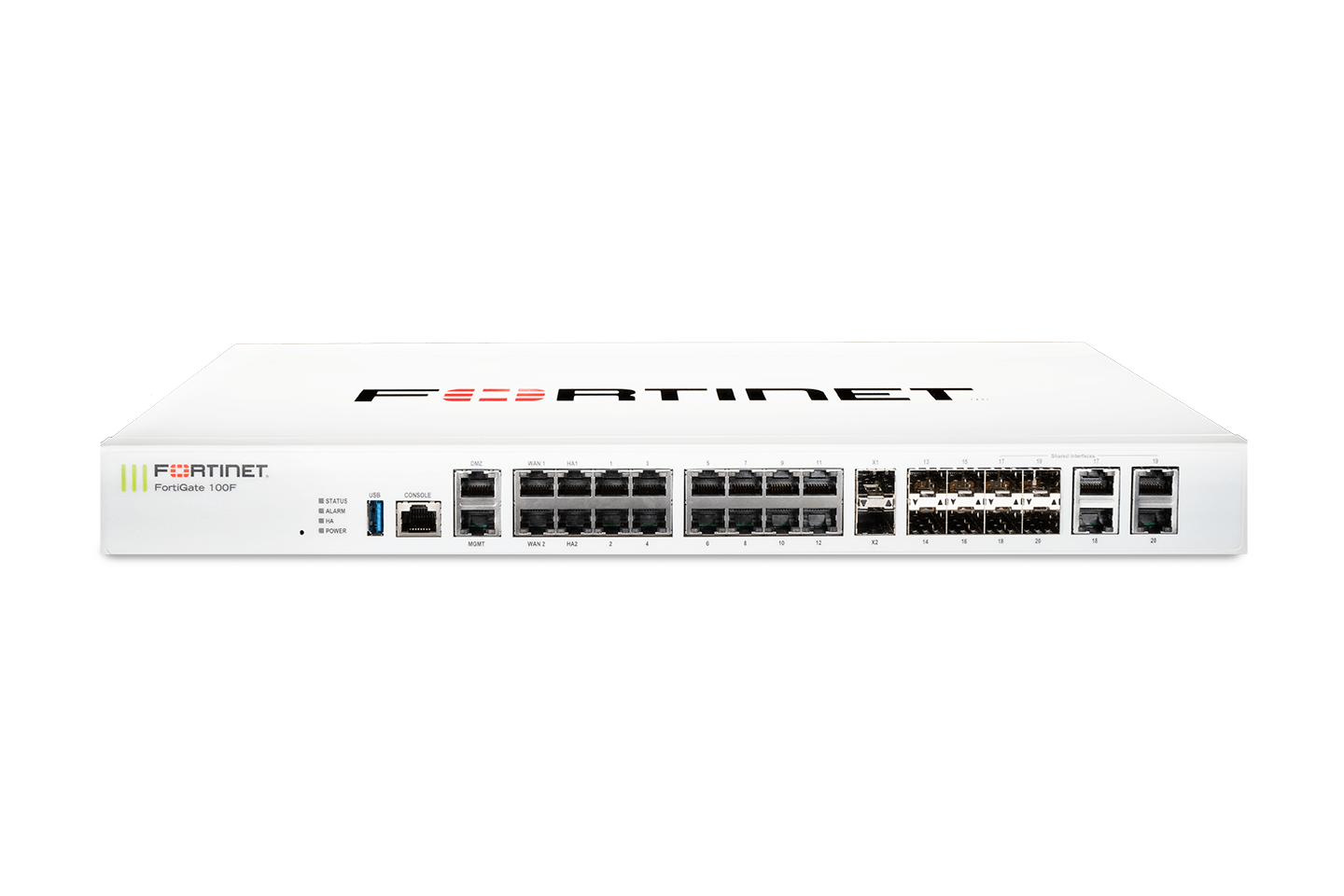

Fortinet FortiGate Firewall FG-100F mit 22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.
The FortiGate 100F/101F series offers next-generation firewall features thanks to its high performance, security efficiency and transparency and is ideally suited for small to medium-sized businesses. Thanks to the 2 x 10 GE SFP+, the firewall is also equipped for high demands. Depending on licensing, the devices provide you with reliable and comprehensive protection against cyber threats and lay the perfect foundation for maximum security of your network.
The FortiGate 100F uses the industry's first SoC4 SD-WAN ASIC, which offers the industry's fastest application identification and control for more than 5,000 applications. This enables users to avoid delays in accessing their applications and accelerates overlay performance by providing low latency and the best possible user experience for business-critical applications.
FortiGate 100F FAQ
Offer the FortiGate 100F LACP or Link Aggregation?
Link aggregation is a bundling of several ports/cables to a virtual link/interface. The FortiGate 100F supports link aggregation, both redundant ports or LACP via 802.3ad can be used. The feature is called Virtual Wire Pair.
How to perform a FortiGate 100F firmware update?
You perform a firmware update by clicking on the "Firmware" tab under "System". From there, the rest of the procedure is self-explanatory. Firmware updates are only available if you have a valid FortiCare Support license. This is activated for 90 days with the purchase of FortiGate hardware.
Provides the FortiGate 100F SD-WAN functionality?
SD-WAN bundles the WAN connections into a single interface. This is managed individually, removing much of the effort involved in configuring two or more WAN connections. You can find instructions for configuring the SD-WAN here.
A component of every FortiGate firewall is, among others, the free use of IPSec and SSL VPN. Here the free FortiClient VPN can be used as VPN client. Instructions for setting up the VPN can be found in the FortiGate CookBook, among other places.
Thanks to the Fortigate VDOM functionality, you have the option of making your firewall multi-tenant. Thus, you can operate your own firewalls for different departments in a very granular way.
With the Fortinet Support (included as FortiCare in every license bundle), you get the possibility to contact the manufacturer directly in case of problems or questions. Among other things, this support license is also necessary for obtaining and downloading firmware updates.
Fortinet FortiGate basic functionality
| Enterprise Protection | |||
| Unified Threat Protection (UTP) | |||
| Advanced Threat Protection (ATP) | |||
| Basic functionality | |||
 |  |  |  |
| Virtual Private Network (VPN) | Antivirus | Antispam | Industrial Security Services |
 |  |  |  |
| SD-WAN Services | Intrusion Prevention System (IPS) | Web & Video Filter | IoT Detection |
 |  |  | |
| Application controll | Mobile Security | FortiConverter Service | |
 |  |  | |
| FortiCare Support* | FortiSandbox Cloud | Security Rating Service | |
* Please note that without a license you can only use FortiCare Support for 90 days.
** Inactive elements are not included in this bundle.
FortiGate licensing FortiGate SMB Sizing Guide FortiGate Live-Demo FortiGate Video
FortiGate license informations
With the Fortinet Security Fabric to Unified Network Management
Many IT managers are faced with the challenge of having to manage and administer increasingly complex systems. This starts with providing effective endpoint protection, moves to providing secured network ports as well as wireless LAN, and ends with unified logging and centralized management. Dank der Fortinet-Security-Fabric können wir Ihnen hier einheitliche Lösungen für Ihre Herausforderung anbieten.
Secure-Access | |
 | Thanks to the FortiSwitch, you can deploy a centrally managed and secure network in no time. Die integrierte NAC-Funktionalität auf den Fortinet-Firewalls bietet Ihnen hier ohne zusätzliche Lizenz einen deutlichen Mehrwert im Bereich der Netzwerksicherheit. |
Secure-Wireless-LAN | |
 | Fast and high-performance WLAN networks are not only needed in offices, but also increasingly in logistics and manufacturing. Thanks to FortiAP Access Points, WLAN networks can be deployed here very quickly and conveniently, which you can manage via the FortiGate firewall, FortiCloud or via a dedicated WLAN controller. |
Endpoint-Protection und EDR-Lösungen | |
 | With the FortiClient you can not only establish secured VPN connections with your FortiGate firewall. In the paid version, FortiClient can be seen as a full-fledged endpoint protection solution. As a further development, the FortiEDR solution is available. Both solutions can communicate with the FortiGate firewall and transmit telemetry data. With this data, the firewall can review additional information and make decisions on whether or not to allow a device to communicate with the network. |
Security Operation Center with the FortiAnalyzer and FortiManager | |
 | Increasingly complex networks, distributed across multiple sites, require unified logging and centralized management. Thanks to the FortiAnalyzer, you have the ability to correlate the log files of the various Fortinet solutions and thus gain a unified picture of your network. Mit dem FortiManager haben Sie zusätzlich die Möglichkeit, Ihre Fortinet-Lösungen zentral zu verwalten und zum Beispiel Firmware Updates auszurollen. |
Product information
| Abmessungen Breite x Tiefe x Höhe: | 432 x 254 x 44 mm |
|---|---|
| Anzahl Netzteile inklusive / maximal : | 2 / 2 |
| Anzahl unterstützte Switche: | 24 |
| Application-Control-Durchsatz: | 2,2 Gbps |
| Bauform: | 19"-Rackmount (1HE) |
| Bundle: | only Hardware |
| Client VPN-Tunnel: | 16.500 (16.000 IPSec- + 500 SSL gleichzeitig) |
| Einsatz: | mittelgroße Unternehmen |
| Firewall IMIX: | 10 Gbps |
| Gewicht: | 3,29 kg |
| Gleichzeitige Verbindungen: | 1.500.000 |
| Gleichzeitige Verbindungen - SSL: | 135.000 |
| IPS Throughput: | 2,6 Gbps |
| IPsec VPN Throughput : | 11,5 Gbps |
| Latenz (64 Byte UDP): | 5 μs |
| Netzwerk/User: | 50-200 |
| Neue Verbindungen/Sek: | 56.000 |
| Number of 10 GE SFP+ Ports: | 2 |
| Number of GE RJ45 Ports: | 24 |
| Number of GE SFP Ports : | 4 |
| Pakete pro Sekunde / MPPS: | 15 |
| Produkt Generation: | F (6. Generation) |
| SSL-Inspection-Durchsatz: | 1 Gbps |
| SSL-VPN Client-Lizenzen inklusive: | 128 (64 im FortiAP Tunnel Mode), ∞ |
| SSL-VPN Throughput: | 750 Mbps |
| Site-2-Site (IPSec) VPN-Tunnel: | 2.500 |
| Stromversorgung: | Intern |
| Threat Protection Throughput: | 800 Mbps |
| Term: | only Hardware |
| Internal storage: | No |
