Fortinet FortiAP-U431F

Indoor Wireless Universal AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 2x2 MU-MIMO), internal antennas, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.For power order: 802.3at PoE injector GPI-130. Optional DC power adaptor SKU SP-FAP43F-PAX-5. Region Code E

Product information "Fortinet FortiAP-U431F"

Begrenztes Budget? - Fordern Sie jetzt Ihr attraktives Angebot an!

The FortiAP U431F access point supports the latest 802.11ax Wifi-6 standard, enabling transmission rates of up to 4.8GBit per 5GHz radio. The access point includes a 5GHz radio, a radio that can operate in 2.4 or 5GHz mode and a 2.4GHz radio with up to 300MBit transmission speed. In addition, you have the option of operating the device redundantly via two PoE+ sources. Other features of this series include 802.11ac beamforming (TxBF), multi-user MIMO (MU-MIMO) and much more. The combination of the 802.11ax standard and its advanced features provide your IT infrastructure with a better data client rate over longer distances. The unit has internal antennas.

The U-Series Advantage

Enjoy the advantage of single-channel technology by managing your U-Series FortiAP through a FortiWLC controller.
Please note that the single-channel technology feature is NOT possible with the FAPU431F .

The FortiAP-U family is perfect for everything from a large campus to hundreds of branch offices, offering a variety of form factors and power levels. FortiAP-U access points are free and centrally managed via the built-in Wifi controller of any FortiGate security appliance, via the also free FortiAP Cloud deployment and management portal, or via standalone controllers (FortiWLC). Protect your LAN edge from campus to branch office with these high-performance APs.

  • Universal Access Management>
    Ability to intelligently support standalone controllers (FortiWLC), integrated security controllers (FortiGate) and cloud management options; and set a new benchmark for flexibility, performance and security.
  • Latest Wifi technologies
    Wi-Fi 6 technology with data rates up to 4.8 Gbps and OFDMA improves client throughput and overall network efficiency.
  • Unmatched security protection
    Integrates with Fortinet's Security Fabric to provide unparalleled cybersecurity protection at the edge of the network.

Highlights

Fortinet Universal Access Points are designed for a wide range of deployments, from branch offices to medium to large offices, schools, universities, hospitals, hotels and large retail shops. Universal access points can serve such a wide range of applications because they can be managed by any of Fortinet's control and management offerings: FortiGate, FortiWLC and FortiAP Cloud.

  • Small/Medium Business
    Retailers can streamline in-store Wi-Fi deployment by combining Universal APs and FortiAP Cloud Management. Combined with FortiDeploy for zero-touch deployment, this provides a cost-effective solution for retail IT.
  •
  • EducationThe education sector is at increasing risk from cyber-attacks. This, combined with the requirements to protect minors from inappropriate materials, can make the use of Wifi challenging. The integrated Secure Wireless Controller (FortiGate) ensures secure student access to learning resources, while FortiGuard services provide cybersecurity protection.
  • Healthcare
    Patient safety is a top priority. Fortinet Universal APs enable hospitals to improve patient safety by enabling vital applications such as telemetry that require low bandwidth but exceptionally high reliability. The dedicated wireless controller (integrated Wifi controller of each FortiGate security appliance) connected to the universal access points keeps patient safety top of mind while providing improved performance for wireless-enabled medical devices.

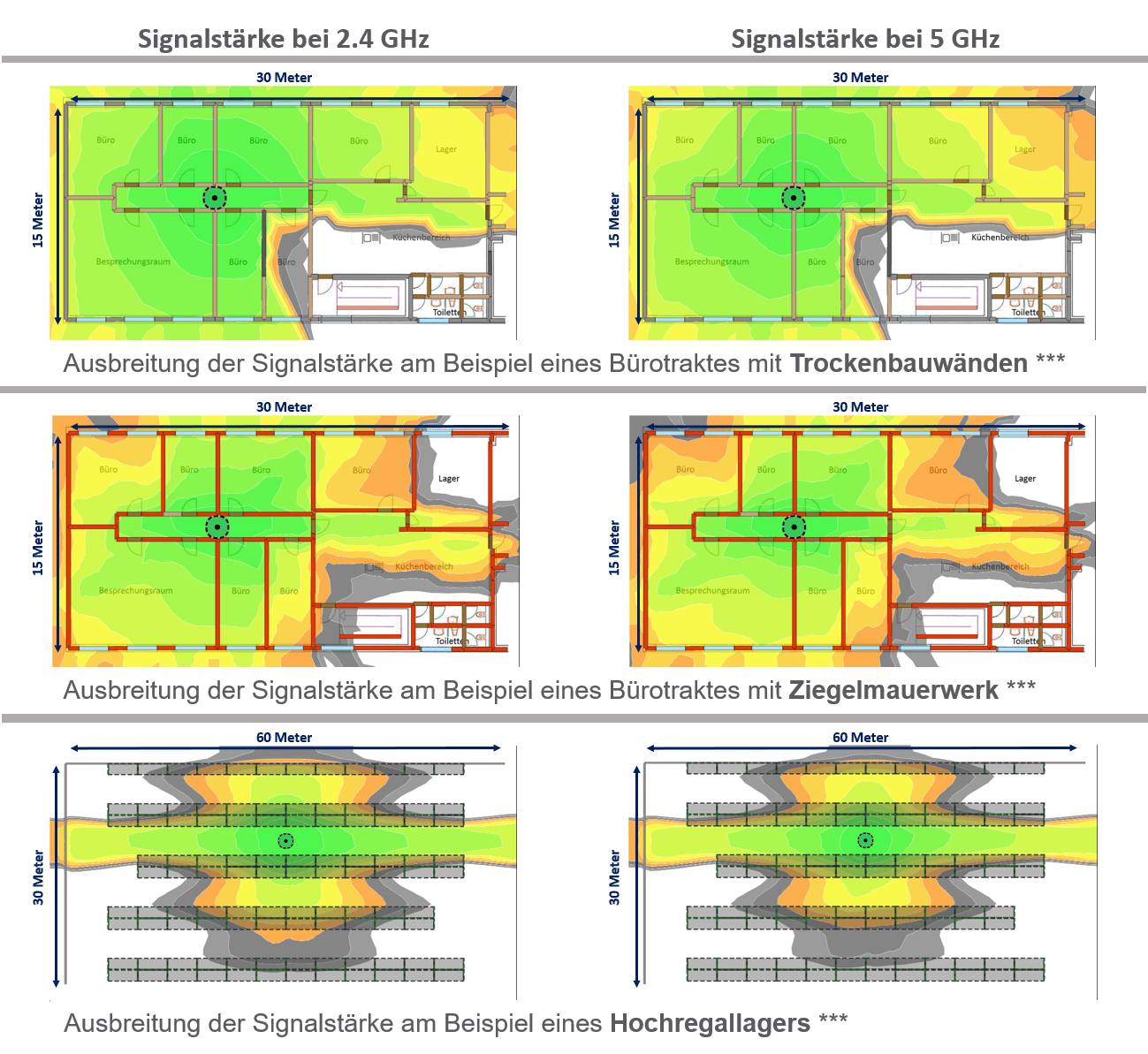

Signal strength of the FortiAP U431F in different scenarios (ceiling mounted)


***These graphics show the propagation of the signal strength within the framework of standardised attenuation values for walls and sources of interference according to the respective material properties. Deviations in signal propagation are possible depending on the building material.

Fortinet FortiAP-U431F Product information

Antennas: 10 Internal + 1 BLE
Assembly: Ceiling , T-rail , Wall
Environment: Indoor
Frequency: 2,4 GHz & 5 GHz
Maximum Throughput 5 GHz: 4,8 Gbps
Radios: 2
802.11: a, b, g, n, ac, ax
MIMO: 4x4:4 MU MIMO
Compare product
Rating
Description
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "pb.forti.ap432G" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "pb.forti.ap441K" | trans | raw }}
{{ "pb.forti.ap443K" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
Price

€1,055.51*

€657.20*

€706.99*

€1,334.32*

€2,588.98*

€1,463.77*

€1,712.71*

€1,822.24*

€1,025.63*

€724.42*

€219.07*

€238.98*

€388.35*

€975.84*

€408.26*

€657.20*

€1,603.17*

€726.90*

€1,863.00*

€2,240.46*

€1,075.42*

Antennas
10 Internal + 1 BLE
4 Internal
2 Extern + 2 RPSMA Connector
8 Internal
8 Extern + 1 BLE
4 Extern + 4 RPSMA Connector
11 Intern
11 Extern
12 Internal + 1 BLE
4 Internal + 1 BLE
4 Internal + 1 BLE
4 External
3 Internal
3 External + 1 BLE external
5 Internal + 1 BLE
5 Internal + 1 BLE
5 External + 1 BLE
5 External + 1 BLE
8 Internal + 1 BLE
11 Extern
10 External + 1 BLE
Assembly
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
-
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; Mast; Wall
Mast; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Pole; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Environment
Indoor
Indoor
Indoor
Indoor
Outdoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Outdoor
Indoor
Indoor
Outdoor
Indoor
Outdoor
Outdoor
Indoor
Frequency
2,4 GHz & 5 GHz
2,4 GHz, 5 GHz & 6 GHz; 20 / 40 / 80 / 160 MHz
2,4 GHz, 5 GHz & 6 GHz
2,4 GHz, 5 GHz & 6 GHz
-
2,4 GHz, 5 GHz & 6 GHz
-
-
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 2,4 GHz & 5 GHz; 5 GHz; 20 / 40 / 80 MHz
2,4 GHz; 5 GHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
Maximum Throughput 5 GHz
4,8 Gbps
1,2 Gbps
1,2 Gbps
2,47 Gbps
2475 Mbps
2,47 Gbps
8.648 Gbps
8.648 Gbps
4,8 Gbps
1,2 Gbps
867 Mbps
867 Mbps
1,2 Gbps
1,2 Gbps
1,2 Gbps
2,47 Gbps
2,4 Gbps
2,47 Gbps
3,46 Gbps
4,8 Gbps
4,8 Gbps
Radios
2
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
4 + 1 BLE
4 + 1 BLE
3 + 1 BLE
3 + 1 BLE
2
2
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
2
3 + 1 BLE
2
2
3 + 1 BLE
2
802.11
a; b; g; n; ac; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ax
e; g; h; i; k; n; r; v; a; b; ac; ax
a; b; g; n; ac; ax
-
-
a; b; g; n; ac; ax
a; b; g; n; ac; ax
a; b; g; n; ac
a; b; g; n; ac
a; b; g; n; ac; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
a; b; g; n; ac
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
MIMO
4x4:4 MU MIMO
2x2:2 MU MIMO
2x2:2 MU MIMO
4x4:4 MU MIMO
-
4x4:4 MU MIMO
-
-
8x8:8 MU MIMO
2x2:2
2x2:2
2x2:2
2x2:2 MU MIMO
2x2:2 MU MIMO
2x2:2 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
Abmessungen Breite x Tiefe x Höhe
-
182 x 182 x 54 mm
-
-
-
-
-
-
-
-
-
-
153 x 153 x 53 mm
-
-
-
-
-
-
-
-
Anzahl Netzteile inklusive / maximal
-
0 / 2
-
-
-
-
-
-
-
-
-
-
0 / 2
-
-
-
-
-
-
-
-
Gewicht
-
0,8 kg
-
-
-
-
-
-
-
-
-
-
0,54 kg
-
-
-
-
-
-
-
-
Max. Datenrate 6 Ghz
-
2,4 Gbps
2,4 Gbps
4,8 Gbps
4804 Mbps
4,8 Gbps
11.530 Gbps
11.530 Gbps
-
-
-
-
-
-
-
-
-
-
-
-
-
Maximum Throughput 2.4 GHz
-
574 Mbps
574 Mbps
1,18 Gbps
1182 Mbps
1,18 Gbps
1,18 Gbps
1,18 Gbps
1,147 Gbps
574 Mbps
400 Mbps
400 Mbps
574 Mbps
574 Mbps
574 Mbps
1,18 Gbps
1,147 Gbps
1,18 Gbps
600 Mbps
4,8 Gbps
-
Number of 2.5 GE RJ45 Ports
-
1
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
Power supply
-
PoE
-
-
-
-
PoE
PoE
-
-
-
-
PoE+
-
-
-
-
-
-
-
-
Stromversorgung
-
Extern
-
-
-
-
-
-
-
-
-
-
Extern
-
-
-
-
-
-
-
-
802.1
-
-
-
-
X
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
802.3
-
-
-
-
ad; at; az; bt
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Number of GE RJ45 Ports
-
-
-
-
-
-
-
-
-
-
-
-
2
-
-
-
-
-
-
-
-
