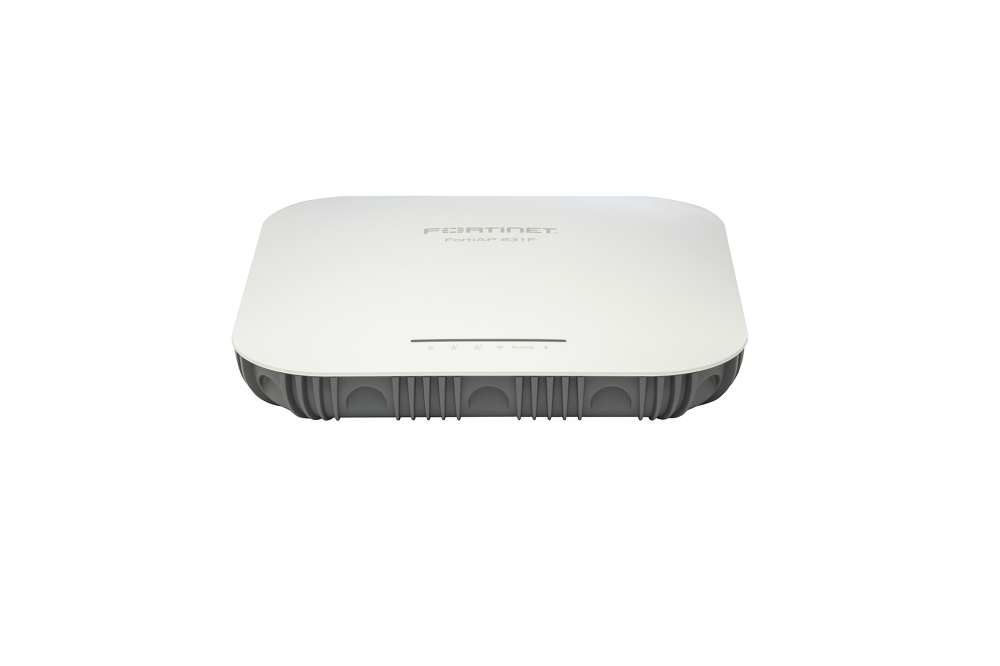

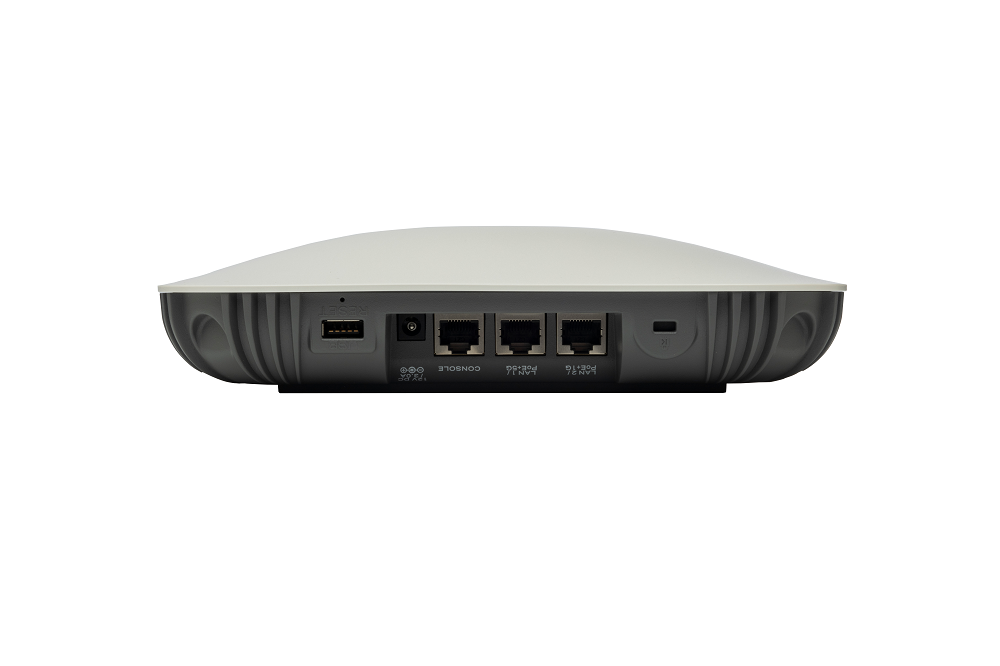

Fortinet FortiAP 831F

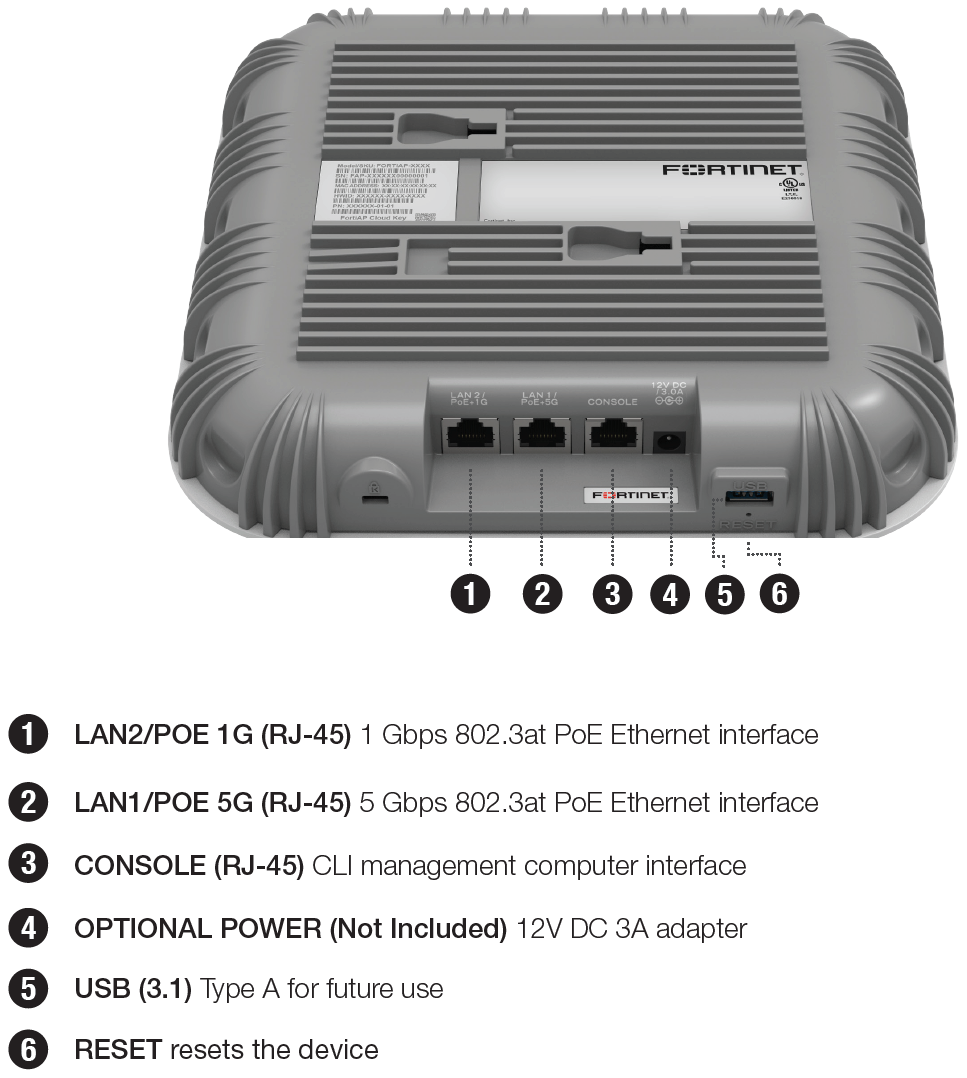

FortiAP-831F Indoor Wireless AP - Tri radio (802.11 b/g/n/ax 4x4 MU-MIMO 802.11 a/n/ac/ax 8x8 MU-MIMO and 1x 802.11 a/b/g/n/ac Wave 2 2x2 ) internal antennas 1x 10/100/1000/2500/5000 Base-T RJ45 1x 10/100/1000 Base-T RJ45 BT / BLE 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA. Region Code E

Product information "Fortinet FortiAP 831F"

Begrenztes Budget? - Fordern Sie jetzt Ihr attraktives Angebot an!

This enterprise-class, high-throughput 802.11ax indoor AP offers three radios and 8 spatial streams. This top-of-the-line access point supports OFDMA, a 2.5 Gigabit Ethernet port and an additional 1 Gbps Ethernet port for PoE diversity. The AP can provide 24/7 scanning across both BNDs while simultaneously providing access to the 2.4 and 5 GHz bands. The integrated BLE radio can be used for beacons and location applications.

FortiAP access points are managed free of charge and centrally üvia the integrated Wifi controller of any FortiGate firewall or üvia the deployment and management portal of the FortiAP Cloud, which is also free of charge. By integrating wireless controller functionality with the market-leading FortiGate appliance, these APs are perfect for protecting your LAN edge from campus to branch offices. Fortinet's Security Fabric makes it easy to manage wired and wireless security from a single, slick management console, protecting your network from the latest security threats.

  • Unified management
    The unified management console simplifies operations and ensures consistency in effective policy enforcement and compliance.
  • Advanced Security Protection
    Wireless LAN security from the market leader in network security. Integrated firewall, IPS, application control and web filtering protect the Wifi from the latest security threats.
  • Integrated Wi-Fi security
    Protects the network from advanced wireless threats and meets PCI DSS compliance.
  • Deployment
    FortiAPs enable a versatile choice of installation topologies with options to suit any business.

Highlights

Fortinet access points are designed for a wide range of deployments, from branch offices üto medium to large Büros, schools, universities, hospitals, hotels and large retail stores. The access points can serve such a wide range of applications because they can be managed by any of Fortinet's control and management offerings: FortiGate, FortiWLC, and FortiAP Cloud.

  • Small/Medium Business
    Single retailers can streamline the deployment of Wifi in stores by combining Universal APs and FortiAP Cloud Management. Combined with FortiDeploy for zero-touch deployment, this provides a cost-effective solution for retail IT.
  • Education
    The education sector is at increasing risk from cyber attacks. This, combined with the requirements to protect minors from inappropriate materials, can make the use of Wifi a challenge. A Secure Wireless Controller (FortiGate) provides secure student access to learning resources, while FortiGuard services provide cybersecurity protection.
  • Healthcare
    Patient safety is a top priority. Fortinet APs enable hospitals to improve patient safety by enabling vital applications such as telemetry that require low bandwidth but exceptionally high reliability. The dedicated wireless controller (integrated Wifi controller of each FortiGate security appliance) connected to the access points ensures that patient safety is paramount while providing enhanced performance for wireless-enabled medical devices.

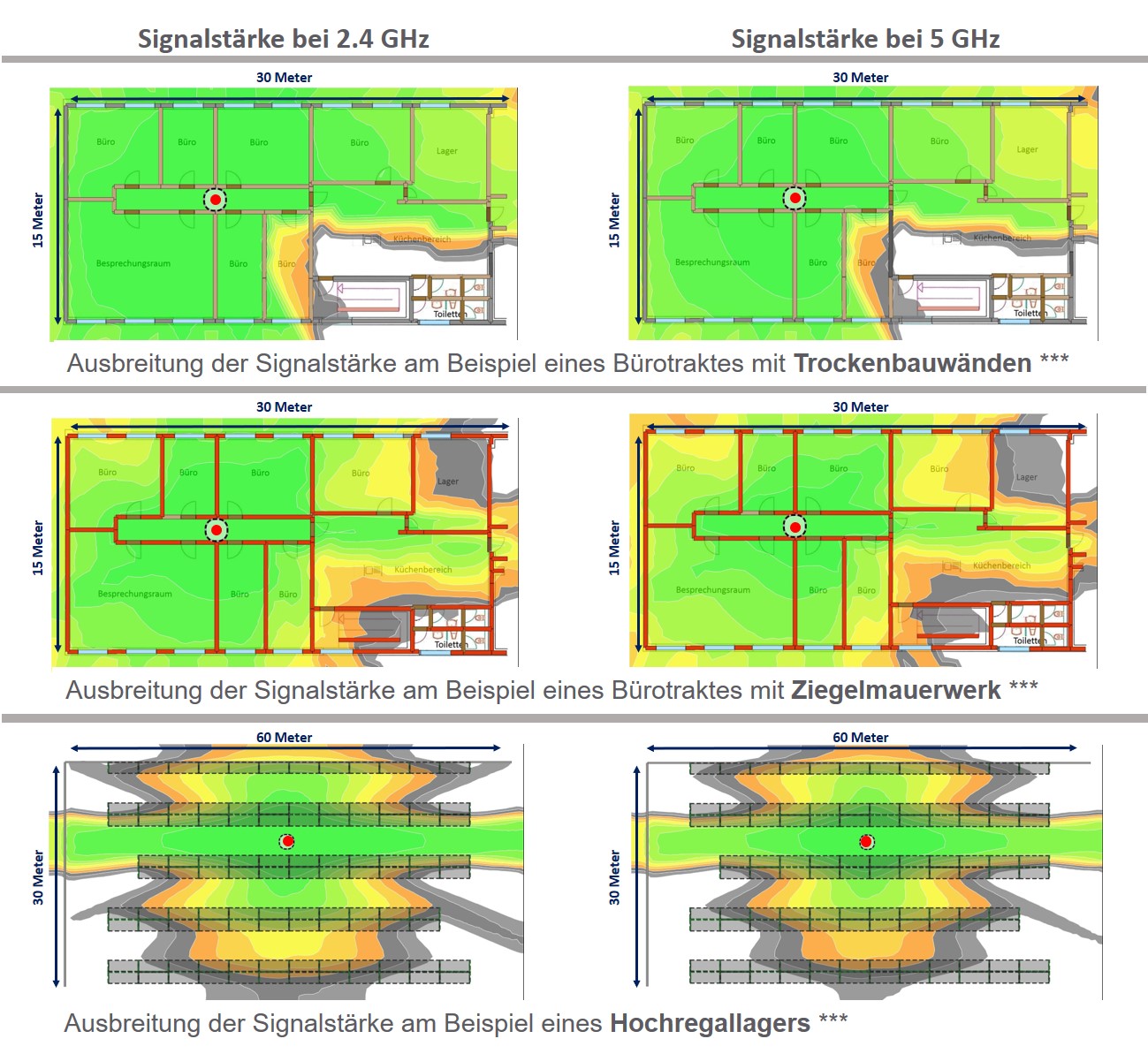

Signal strength of the FortiAP 831F in different scenarios (Ceiling mounting)


***These graphics show the propagation of the signal strength within the framework of standardized attenuation values for walls and interference sources according to the respective material properties. Deviations in the signal propagation are possible depending on the building substance.

Fortinet FortiAP 831F Product information

Antennas: 12 Internal + 1 BLE
Assembly: Ceiling , T-rail , Wall
Environment: Indoor
Frequency: 2,4 GHz & 5 GHz
Maximum Throughput 2.4 GHz: 1,147 Gbps
Maximum Throughput 5 GHz: 4,8 Gbps
Radios: 3 + 1 BLE
802.11: a, b, g, n, ac, ax
MIMO: 8x8:8 MU MIMO
Compare product
Rating
Description
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "pb.forti.ap432G" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "pb.forti.ap441K" | trans | raw }}
{{ "pb.forti.ap443K" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
Price

€1,025.63*

€657.20*

€706.99*

€1,334.32*

€2,588.98*

€1,463.77*

€1,712.71*

€1,822.24*

€724.42*

€219.07*

€238.98*

€388.35*

€975.84*

€408.26*

€657.20*

€1,603.17*

€726.90*

€1,863.00*

€1,055.51*

€2,240.46*

€1,075.42*

Antennas
12 Internal + 1 BLE
4 Internal
2 Extern + 2 RPSMA Connector
8 Internal
8 Extern + 1 BLE
4 Extern + 4 RPSMA Connector
11 Intern
11 Extern
4 Internal + 1 BLE
4 Internal + 1 BLE
4 External
3 Internal
3 External + 1 BLE external
5 Internal + 1 BLE
5 Internal + 1 BLE
5 External + 1 BLE
5 External + 1 BLE
8 Internal + 1 BLE
10 Internal + 1 BLE
11 Extern
10 External + 1 BLE
Assembly
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
-
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; Mast; Wall
Mast; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Pole; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Environment
Indoor
Indoor
Indoor
Indoor
Outdoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Outdoor
Indoor
Indoor
Outdoor
Indoor
Outdoor
Indoor
Outdoor
Indoor
Frequency
2,4 GHz & 5 GHz
2,4 GHz, 5 GHz & 6 GHz; 20 / 40 / 80 / 160 MHz
2,4 GHz, 5 GHz & 6 GHz
2,4 GHz, 5 GHz & 6 GHz
-
2,4 GHz, 5 GHz & 6 GHz
-
-
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 2,4 GHz & 5 GHz; 5 GHz; 20 / 40 / 80 MHz
2,4 GHz; 5 GHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
Maximum Throughput 2.4 GHz
1,147 Gbps
574 Mbps
574 Mbps
1,18 Gbps
1182 Mbps
1,18 Gbps
1,18 Gbps
1,18 Gbps
574 Mbps
400 Mbps
400 Mbps
574 Mbps
574 Mbps
574 Mbps
1,18 Gbps
1,147 Gbps
1,18 Gbps
600 Mbps
-
4,8 Gbps
-
Maximum Throughput 5 GHz
4,8 Gbps
1,2 Gbps
1,2 Gbps
2,47 Gbps
2475 Mbps
2,47 Gbps
8.648 Gbps
8.648 Gbps
1,2 Gbps
867 Mbps
867 Mbps
1,2 Gbps
1,2 Gbps
1,2 Gbps
2,47 Gbps
2,4 Gbps
2,47 Gbps
3,46 Gbps
4,8 Gbps
4,8 Gbps
4,8 Gbps
Radios
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
4 + 1 BLE
4 + 1 BLE
3 + 1 BLE
2
2
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
2
3 + 1 BLE
2
2
2
3 + 1 BLE
2
802.11
a; b; g; n; ac; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ax
e; g; h; i; k; n; r; v; a; b; ac; ax
a; b; g; n; ac; ax
-
-
a; b; g; n; ac; ax
a; b; g; n; ac
a; b; g; n; ac
a; b; g; n; ac; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
a; b; g; n; ac
a; b; g; n; ac; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
MIMO
8x8:8 MU MIMO
2x2:2 MU MIMO
2x2:2 MU MIMO
4x4:4 MU MIMO
-
4x4:4 MU MIMO
-
-
2x2:2
2x2:2
2x2:2
2x2:2 MU MIMO
2x2:2 MU MIMO
2x2:2 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
Abmessungen Breite x Tiefe x Höhe
-
182 x 182 x 54 mm
-
-
-
-
-
-
-
-
-
153 x 153 x 53 mm
-
-
-
-
-
-
-
-
-
Anzahl Netzteile inklusive / maximal
-
0 / 2
-
-
-
-
-
-
-
-
-
0 / 2
-
-
-
-
-
-
-
-
-
Gewicht
-
0,8 kg
-
-
-
-
-
-
-
-
-
0,54 kg
-
-
-
-
-
-
-
-
-
Max. Datenrate 6 Ghz
-
2,4 Gbps
2,4 Gbps
4,8 Gbps
4804 Mbps
4,8 Gbps
11.530 Gbps
11.530 Gbps
-
-
-
-
-
-
-
-
-
-
-
-
-
Number of 2.5 GE RJ45 Ports
-
1
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
Power supply
-
PoE
-
-
-
-
PoE
PoE
-
-
-
PoE+
-
-
-
-
-
-
-
-
-
Stromversorgung
-
Extern
-
-
-
-
-
-
-
-
-
Extern
-
-
-
-
-
-
-
-
-
802.1
-
-
-
-
X
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
802.3
-
-
-
-
ad; at; az; bt
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Number of GE RJ45 Ports
-
-
-
-
-
-
-
-
-
-
-
2
-
-
-
-
-
-
-
-
-
